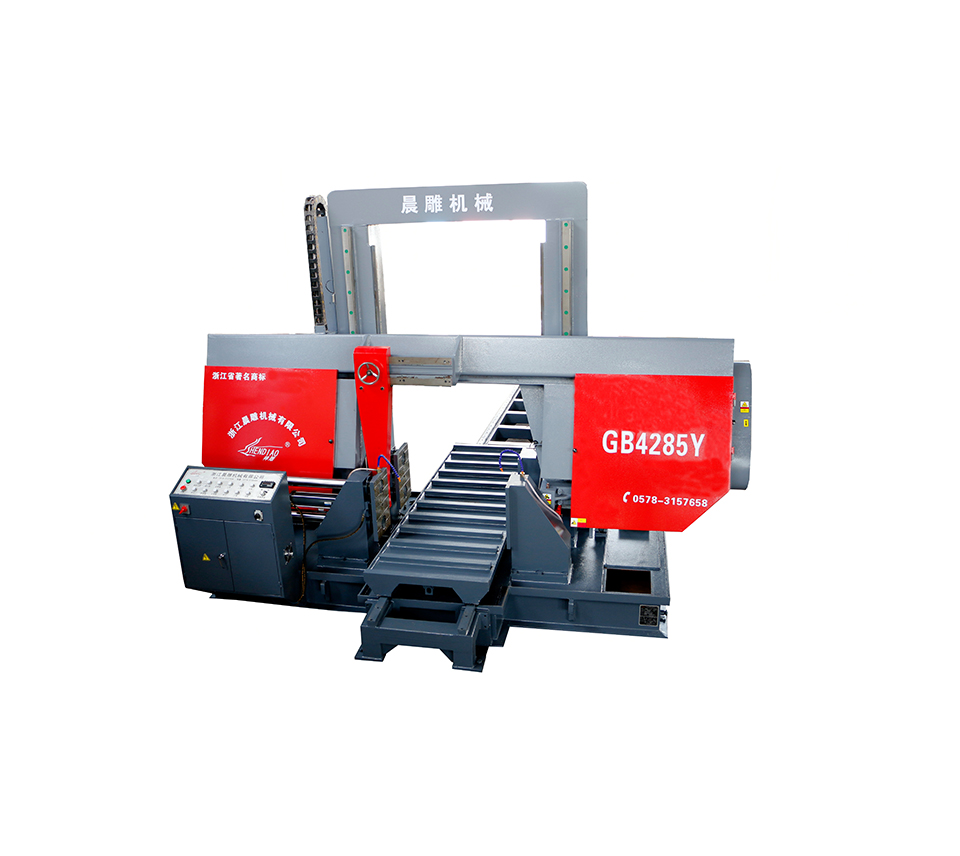

gb4285y-乐彩网app下载安装

1.sawing capacity: height：300mm
                deep throat：400mm
                itineraries：1250mm
2. main motor：     2.2kw
3. cutting speed：  25，45，70m/min。
4. feed speed: stepless speed regulation.
5. oil pump motor: adopt well-known brand.
6.main electric parts: adopt tianzheng or zhengtai electric.
7. hydraulic main part: adopt domestic famous brand.
8.linear guide: upper silver
9. hydraulic tank capacity: approx40l。
10. working pressure of oil cylinder：4mpa-6mpa。
11. table height above ground: approx900mm。
12.table size: about 2600 x 770(length x width)
13.band size: 34x1.1 length to be determined
14. host size: about 2600x1200x1880(length x width x height)
